Fixed Charging Cabinets
MEGA 5 - Fixed Energy Storage & Charging Product 320kw/522kwh
Multi-energy Complementary
Charge 10 mins, drive 100 km522kWh energy storage, 360kWpeak power AC/DC & PV multi-energy compatible
Advanced Safety
Protection Multi-level temp monitoring Multi-layer fusing Multi-layer fire protection, efficient pressure relief & fire extinguishing, long-cycle cells & Al early warning
Grid Dynamic Capacity Expansion
Reduce transformer load and break through capacity limits Boost station charging power Cut investment and operational costs
Smart Energy Management
Intelligent energy flow scheduling integrated peak shaving, VPP, backup power, cost reduction, efficiency improvement, reliable power
BMS Full Life Cycle Monitoring
Real-time monitoring of battery status to ensure safe operation.
Intelligent early warning for abnormalities extends battery service life.
Full-cycle data traceability, precise fault location.
Multi-energy Complementary
Charge 10 mins, drive 100 km522kWh energy storage, 360kWpeak power AC/DC & PV multi-energy compatible
Advanced Safety
Protection Multi-level temp monitoring Multi-layer fusing Multi-layer fire protection, efficient pressure relief & fire extinguishing, long-cycle cells & Al early warning
Grid Dynamic Capacity Expansion
Reduce transformer load and break through capacity limits Boost station charging power Cut investment and operational costs
Smart Energy Management
Intelligent energy flow scheduling integrated peak shaving, VPP, backup power, cost reduction, efficiency improvement, reliable power
BMS Full Life Cycle Monitoring
Real-time monitoring of battery status to ensure safe operation.
Intelligent early warning for abnormalities extends battery service life.
Full-cycle data traceability, precise fault location.
Product Introduction
MEGA 5 redefines ease of use and control for modern energy storage. Its system features an intuitive device layout for straightforward oversight, supported by real-time monitoring of all critical operational statuses.
Built for seamless integration, it offers standard protocol interfaces and flexible platform interconnection, ensuring compatibility within diverse ecosystems. Proactive maintenance is enabled through comprehensive health status tracking, which provides real-time alarm monitoring and in-depth battery health diagnosis to preempt potential issues.
Finally, it delivers clear business insight with its operating receipt function, offering real-time statistics on charge/discharge cycles and up-to-the-minute revenue updates, ensuring you are always informed on performance and profitability.
MEGA 5 combines robust hardware with intelligent software, making advanced energy management both accessible and efficient.

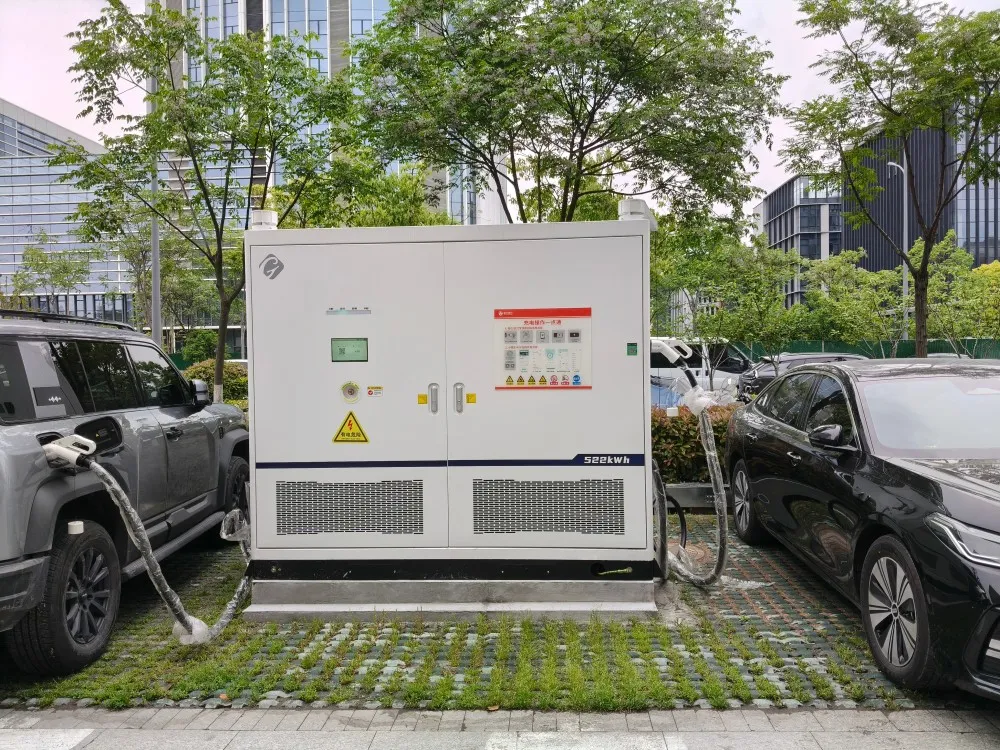

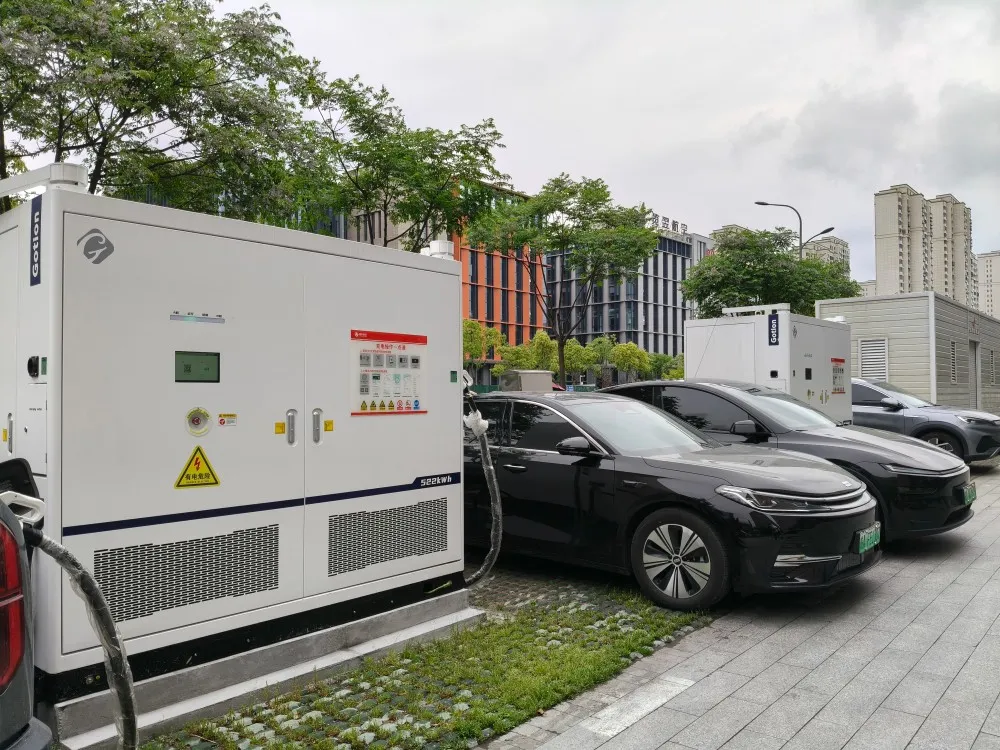

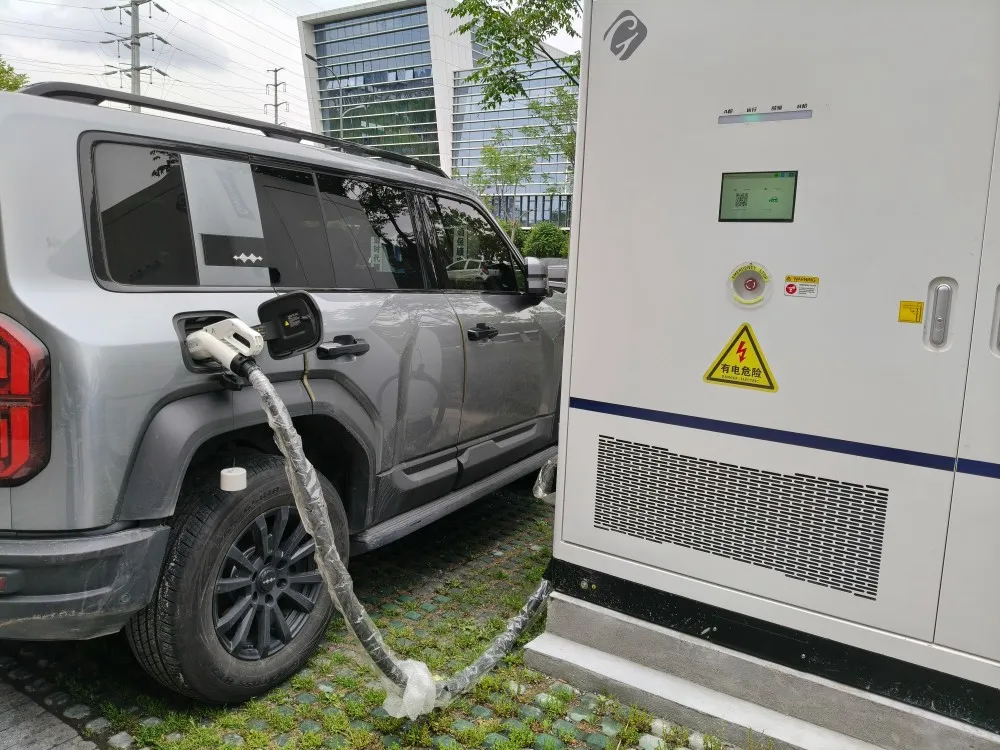

Application Scenario
 |
 |
 |
 |
Technical Parameters
|
Item |
Parameter |
|
Output Power (kW ) |
DC: 360kW (CCS2) |
|
AC:44kW |
|
|
Output Voltage |
DC 200~1000Vdc |
|
AC 400Vac |
|
|
Size (mm ) |
2530Lx2360Wx1450H |
|
Weight (kg ) |
5000 |
|
AC Input |
Max110kw 160A 3ph (50Hz) DT connection |
|
AC Output |
63A cee-3ph |
|

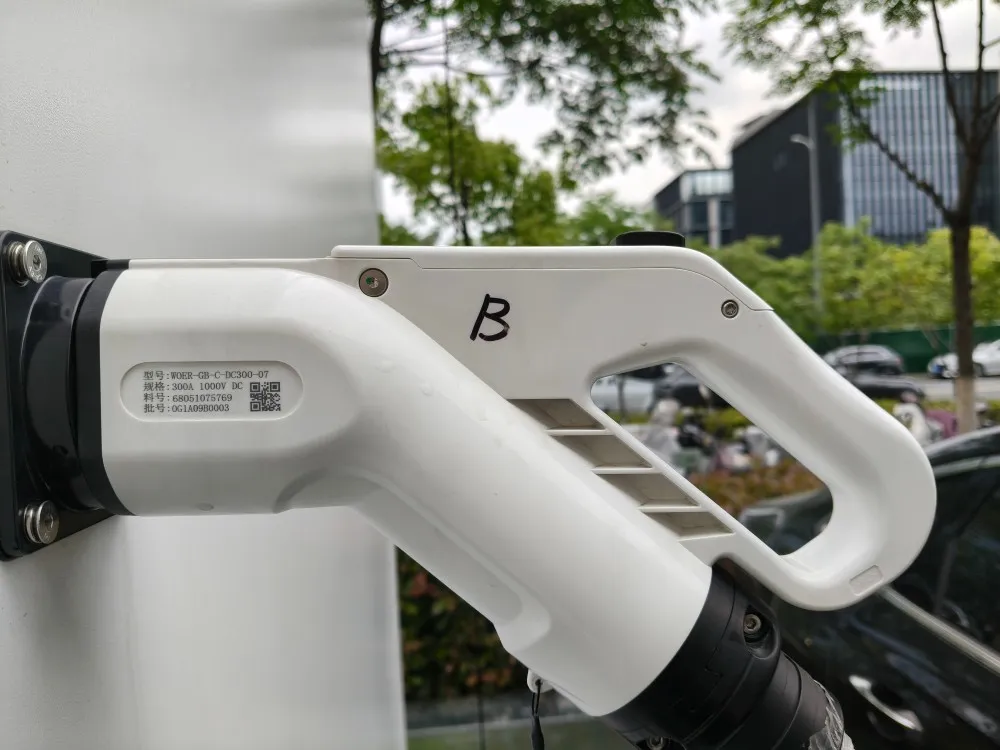

Charging Connector Output |
MAX 380A CCS2*5m*2 |
|
Standard Energy Capacity (kWh ) |
522 |
|
Cooling Method |
Liquid cooling |
|
Operating Temperature Range (°C ) |
-25 ~45 |
|
Altitude (m ) |
<2000 |
|
Enclosure Protection Rating |
IP54 |
|
HMI Interface |
10.1寸 |
|
Compliance Standards |
IEC62619、1EC61851 |
Product Introduction
MEGA 5 redefines ease of use and control for modern energy storage. Its system features an intuitive device layout for straightforward oversight, supported by real-time monitoring of all critical operational statuses.
Built for seamless integration, it offers standard protocol interfaces and flexible platform interconnection, ensuring compatibility within diverse ecosystems. Proactive maintenance is enabled through comprehensive health status tracking, which provides real-time alarm monitoring and in-depth battery health diagnosis to preempt potential issues.
Finally, it delivers clear business insight with its operating receipt function, offering real-time statistics on charge/discharge cycles and up-to-the-minute revenue updates, ensuring you are always informed on performance and profitability.
MEGA 5 combines robust hardware with intelligent software, making advanced energy management both accessible and efficient.
Application Scenario
|
|
|
|
Technical Parameters
|
Item |
Parameter |
|
Output Power (kW ) |
DC: 360kW (CCS2) |
|
AC:44kW |
|
|
Output Voltage |
DC 200~1000Vdc |
|
AC 400Vac |
|
|
Size (mm ) |
2530Lx2360Wx1450H |
|
Weight (kg ) |
5000 |
|
AC Input |
Max110kw 160A 3ph (50Hz) DT connection |
|
AC Output |
63A cee-3ph |
|
Charging Connector Output |
MAX 380A CCS2*5m*2 |
|
Standard Energy Capacity (kWh ) |
522 |
|
Cooling Method |
Liquid cooling |
|
Operating Temperature Range (°C ) |
-25 ~45 |
|
Altitude (m ) |
<2000 |
|
Enclosure Protection Rating |
IP54 |
|
HMI Interface |
10.1寸 |
|
Compliance Standards |
IEC62619、1EC61851 |
